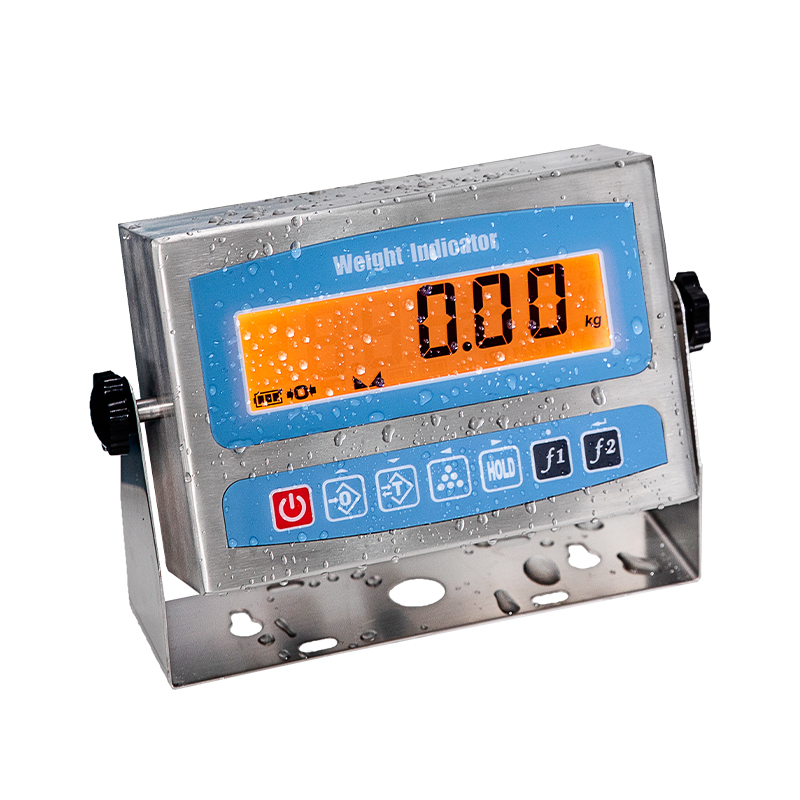

Waterproof Weight Indicator
HF22C
All 304 stainless steel case, standard 304 stainless steel U-shaped bracket, 25.4mm high character height full-viewing angle ultra-black LCD display, built-in 6V4Ah lead-acid battery, built-in wide voltage input power module, standard RS232 communication, high precision, IP67 protection, multi-function, support for a variety of options

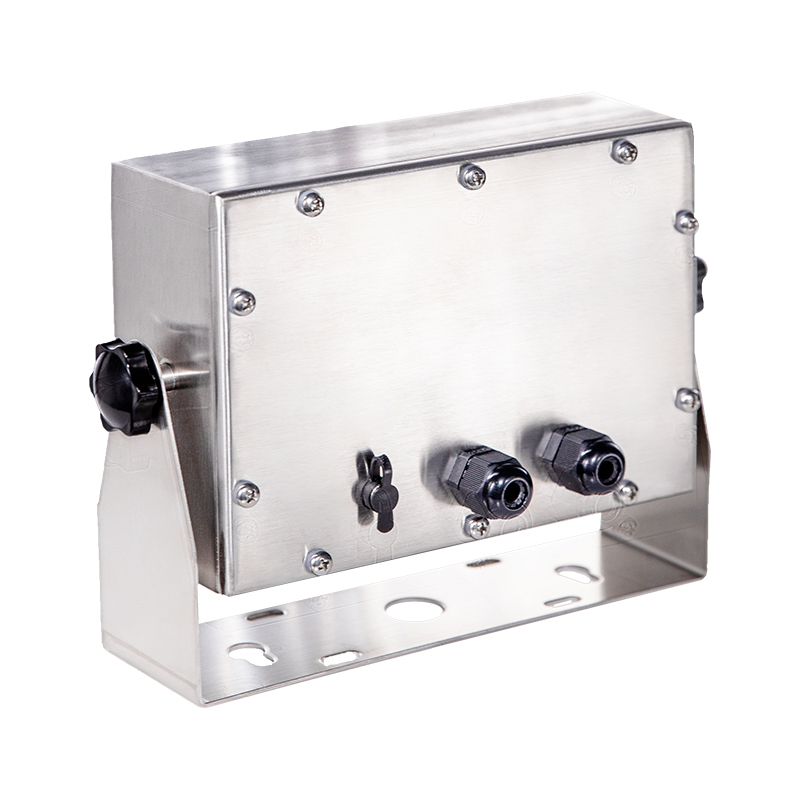

SS304 housing & SS304 U-type bracket
High contrast 1.0inch/25mm orange LED display
Full view-angle 1.0inch/25mm LCD display with orange LED backlight
7-button flat membrane keypad
Drives up to 16x 350ohm loadcells
Universal 100~240Vac power supply
Built-in 6V4Ah lead acid rechargeable battery
Structured menu and user-friendly messages
2 user-defined function keys
2 configurable software set-points
5-point linearity calibration & zero calibration
Full duplex RS-232 communication
Various software and hardware options
SS304 T-type bracket for pole mounting
RS-485 communication (8)
0~20mA/0~10V analog output (A)
Bluetooth BLE communication (B)
Real-time clock with backup battery (C)
RF kit for RF scoreboard or transmitter (F)
Set-point output with solid state relay (M)
Set-point output with middle-power relay (R)
Format editable printing (P)
