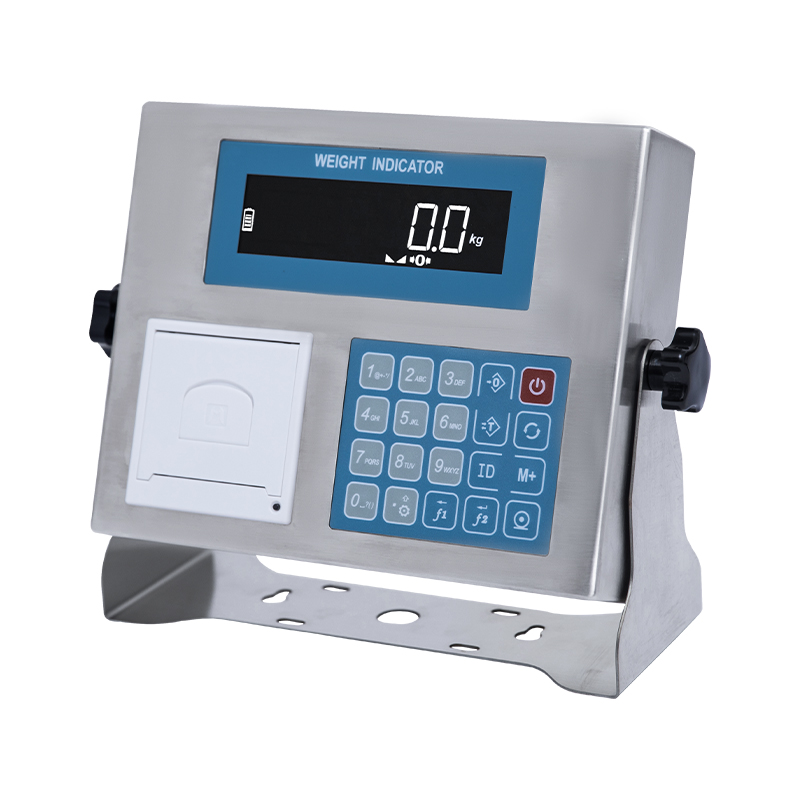

Truck Scale Weight Indicator
HF310T
All 304 stainless steel case, standard 304 stainless steel wide U-shaped bracket, ultra-high contrast ultra-black negative display double-line PIN LCD display, built-in large-capacity lithium battery, built-in wide voltage input power module, PIN-shaped power cord, standard RS232 communication, high precision, special entry and exit function for truck scales, built-in large-capacity database, built-in label printer, proprietary print format user-defined function, support user bitmap download, optional PS/2 interface, support external 84/87/96/104/108 full keyboard, support a variety of options
SS304 housing and SS304 U-type bracket
Built-in 58mm thermal label printer with quick paper installation
Ultra-contrast 0.8inch white BTN LCD display
Dual 15-segment display
20-button flat membrane numeric keypad
Drives up to 16x 350ohm loadcells
Single 4/6-wire loadcell application
Optional 2x 4x multi-scale weighing
Real-time clock with backup battery
Full duplex RS-232 communication
4 user-defined function keys
Various optional l/O ports
Basic weighing, check-weighing, and easy-to-use auto Truck-In/Out weighing
Dual-line structured menu and user-friendly messages
Alphanumeric input for typing in up to 16 characters
Database with 2000 weighing & 2000 truck records
Format editable printing with multi-string configuratione
Ticket and report printingBarcode, QR code and bitmap printing
Various configurable measurement units,percentage and user-defined unit
5-point linearity calibration & zero calibration
Built-in 3.7V4Ah li-ion rechargeable battery
Universal 100~240Vac power supply
Various software and hardware options
SS304 T-type bracket for pole mounting
External PS/2 keyboard input (2)
RS-485 communication (8)
Bluetooth BLE communication (B)
0~20mA/0~10V analog output(A)
RF kit for RF scoreboard or transmitter (F)
