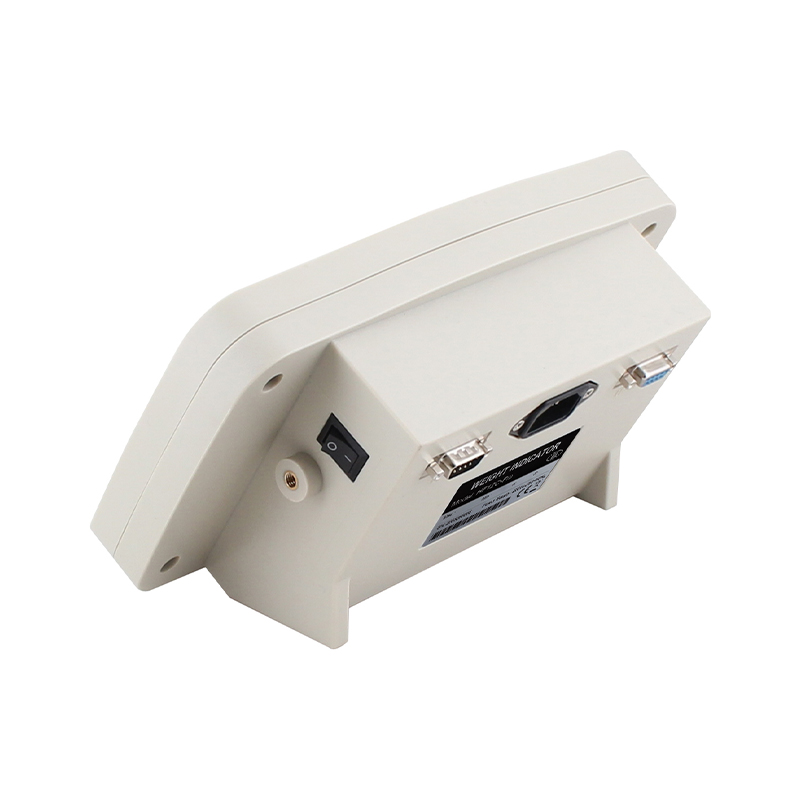

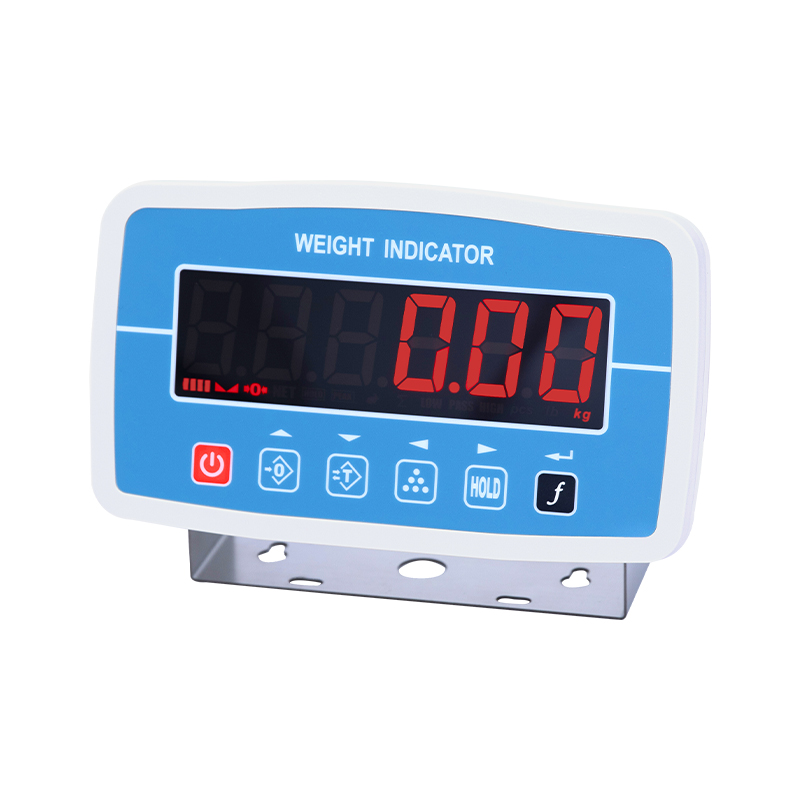

Weight Indicator
HF12S
ABS engineering plastic case, standard 201 stainless steel U-shaped bracket, large font 38mm ultra-bright LED display, built-in 6V4Ah lead-acid battery, built-in wide voltage input power module, suffix power cord, standard RS232 communication, high precision, multi-function, support a variety of options
ABS plastic housing

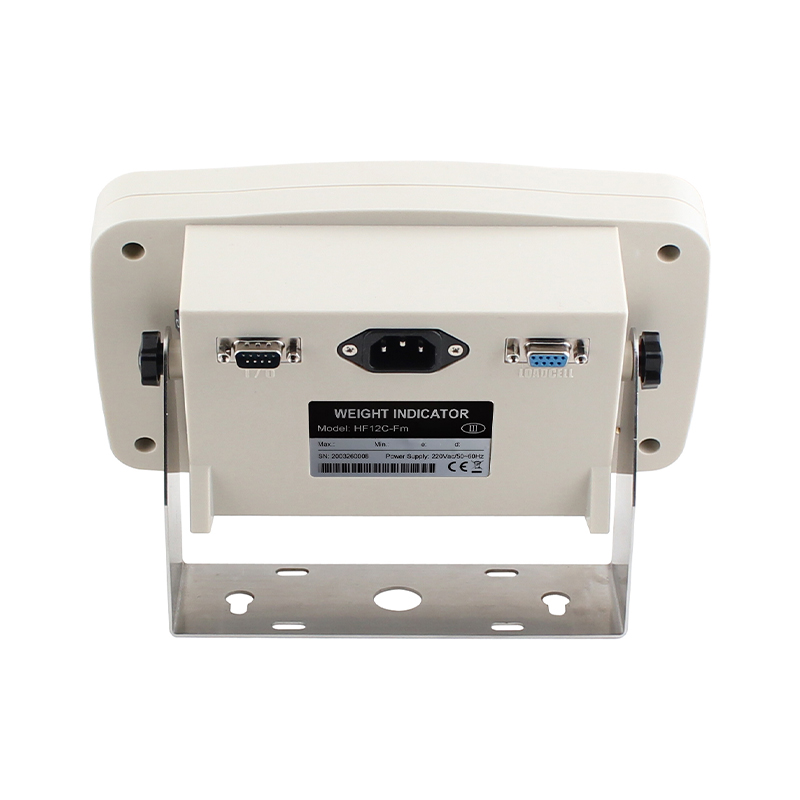

Stainless steel U-type bracket for pole/wall mounting
6-digit 1.5inch/38mm high-intensity LED display
6-digit 1.6inch/40mm LCD display with backlight
Universal 100~240Vac power supply
6-button flat-type tact switch keypad
Drives up to 8x 350ohm loadcells
Built-in 6V4Ah lead acid rechargeable battery
Structured menu and user-friendly messages
1 user-defined function key
2 configurable software set-points
5-point linearity calibration & zero calibration
Full duplex RS-232 communication
Various software and hardware options
RS-485 communication (8)
4~20mA/0~10V analog output (A)
Bluetooth BLE communication (B)
Real-time clock with backup battery(C)
RF kit for RF scoreboard or transmitter(F)
Format editable printing (P)
USB serial communication (U)
